Trapezium Dome calculation tool
Enter the radius of the dome, then click the calculate button.
To build a trapezium panel dome frame you will need:
16 lengths of 'A' size struts
16 lengths of 'B' size struts
16 lengths of 'C' size struts
80 lengths of 'X' size struts
All hubs are four way except for the base (16) which are three way and the top one which is sixteen way.
Panelised construction
To build a trapezium panel dome you will need:
16 '1' panels.
16 '2' panels.
16 '3' panels.
16 '4' panels.

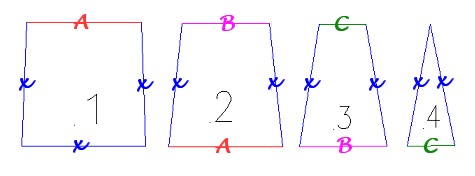

The plan below shows all the panels and struts colour coded to assist with assembly.
Click here to see all dome calulation tools.
